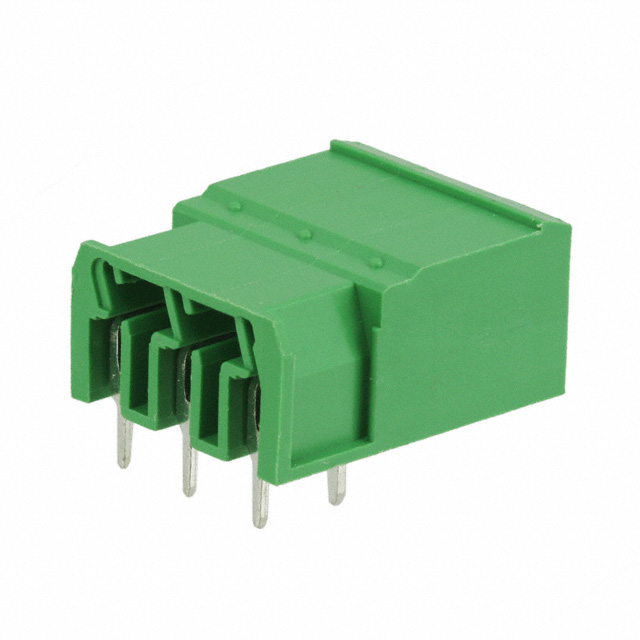

VC0300500000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VC0300500000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VC0300500000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VC0300500000G |
|---|---|
| Manufacturer | Anytek (Amphenol Anytek) |
| Description | TERM BLOCK HDR 3POS 90DEG 7.62MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.748 | $0.567 | $0.525 | $0.472 | $0.461 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.403 | $0.369 | $0.334 | $0.294 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VC0300500000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS 90DEG 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70592 pcs | Data sheet | 20020618 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | 07-762 | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 20020618-M031A01LF 20020618M031A01LF 609-3952 VC0300500000G-ND VC03005000J0G VC03005000J0G-ND |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.563" (14.30mm) | Ingress Protection | - |
| Housing Material | Thermoplastic Resin | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole |
| Current - UL | 32A | Current - IEC | - |
| Contact Tail Length | 0.197" (5.00mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
