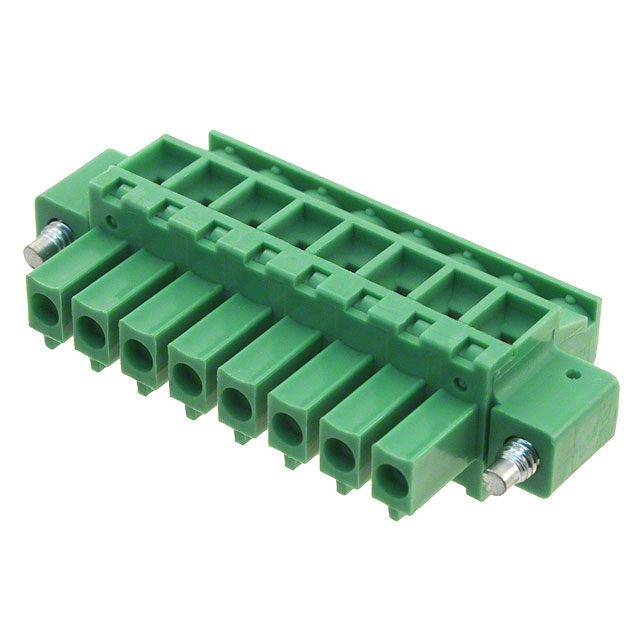

TS08315D0000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS08315D0000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS08315D0000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS08315D0000G |
|---|---|
| Manufacturer | Anytek (Amphenol Anytek) |
| Description | TERM BLOCK PLUG 8POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.74 | $1.327 | $1.243 | $1.105 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.081 | $0.997 | $0.901 | $0.799 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TS08315D0000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43607 pcs | Data sheet | 20020011 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7mm |
| Wire Gauge or Range - mm² | 0.5-1.5mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | 02-381 | Screw Size | M2 |
| Positions Per Level | 8 | Plug Wire Entry | 270° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 20020011-D081B01LF 20020011D081B01LF 609-4153 TS08315D0000G-ND TS08315D00J0G TS08315D00J0G-ND |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.752" (19.10mm) | Ingress Protection | - |
| Housing Material | Thermoplastic Resin | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 270° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
