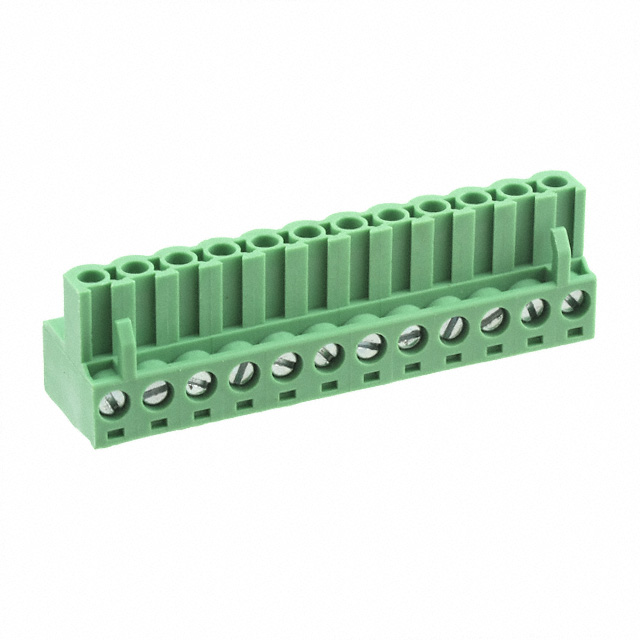

TJ1251560000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TJ1251560000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TJ1251560000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TJ1251560000G |
|---|---|
| Manufacturer | Anytek (Amphenol Anytek) |
| Description | TERM BLOCK PLUG 12POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.788 | $1.363 | $1.276 | $1.134 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.11 | $1.023 | $0.925 | $0.82 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TJ1251560000G | Manufacturer | Anytek (Amphenol Anytek) |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39602 pcs | Data sheet | 20020006 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 7-8mm |
| Wire Gauge or Range - mm² | 1-2.5mm² | Wire Gauge or Range - AWG | 12-24 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | 01-508 | Screw Size | M3 |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 20020006-H121B01LF 20020006H121B01LF 609-3894 TJ1251560000G-ND TJ12515600J0G TJ12515600J0G-ND |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.594" (15.09mm) | Ingress Protection | - |
| Housing Material | Thermoplastic Resin | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 12A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
