Home > Products > Capacitors > Ceramic Capacitors > 562R5GAT47TX

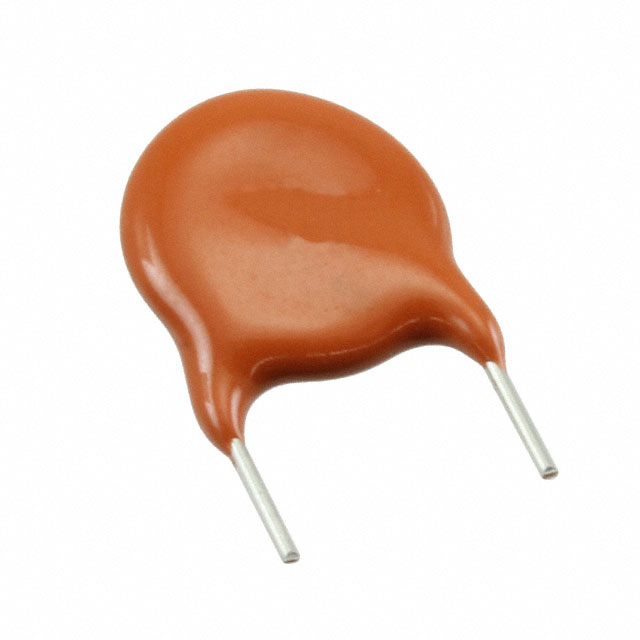

562R5GAT47TX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 562R5GAT47TX with confidence from Components-World.HK, 1 Year Warranty

Dowload 562R5GAT47TX Details in PDF

Request a Quote

Part Number	562R5GAT47TX
Manufacturer	Angstrohm / Vishay
Description	CAP CER 470PF 1KV X5F RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 184058 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.112

Product parameter
Data sheet

Product parameter

Part Number	562R5GAT47TX	Manufacturer	Angstrohm / Vishay
Description	CAP CER 470PF 1KV X5F RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	184058 pcs	Data sheet	561R, 562R, 565R Series
Category	Capacitors	Voltage - Rated	1000V (1kV)
Tolerance	±20%	Thickness (Max)	-
Temperature Coefficient	X5F	Size / Dimension	0.252" Dia (6.40mm)
Series	Cera-Mite 562R	Ratings	-
Packaging	Bulk	Package / Case	Radial, Disc
Operating Temperature	-55°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	40 Weeks
Lead Style	Straight	Lead Spacing	0.252" (6.40mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.377" (9.58mm)
Features	-	Failure Rate	-
Detailed Description	470pF ±20% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc	Capacitance	470pF
Applications	General Purpose
