Home > Products > Capacitors > Ceramic Capacitors > 562R5GAD10TR

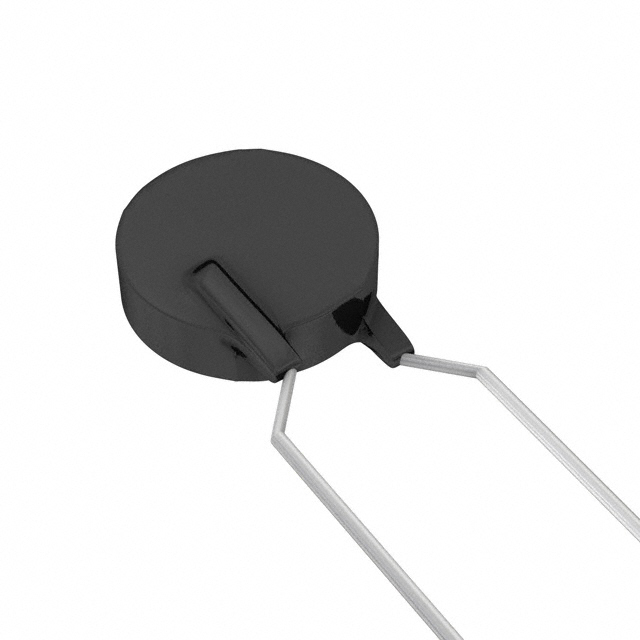

562R5GAD10TR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 562R5GAD10TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	562R5GAD10TR
Manufacturer	Angstrohm / Vishay
Description	CAP CER 1000PF 1KV X7R RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 195175 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.114

Product parameter
Data sheet

Product parameter

Part Number	562R5GAD10TR	Manufacturer	Angstrohm / Vishay
Description	CAP CER 1000PF 1KV X7R RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	195175 pcs	Data sheet	561R, 562R, 565R Series
Category	Capacitors	Voltage - Rated	1000V (1kV)
Tolerance	±10%	Thickness (Max)	-
Temperature Coefficient	X7R	Size / Dimension	0.291" Dia (7.40mm)
Series	Cera-Mite 562R	Ratings	-
Packaging	Tape & Reel (TR)	Package / Case	Radial, Disc
Operating Temperature	-55°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	40 Weeks
Lead Style	Straight	Lead Spacing	0.252" (6.40mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.417" (10.58mm)
Features	-	Failure Rate	-
Detailed Description	1000pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, Disc	Capacitance	1000pF
Applications	General Purpose
