Home > Products > RF/IF and RFID > RF Directional Coupler > XC0900A-03S

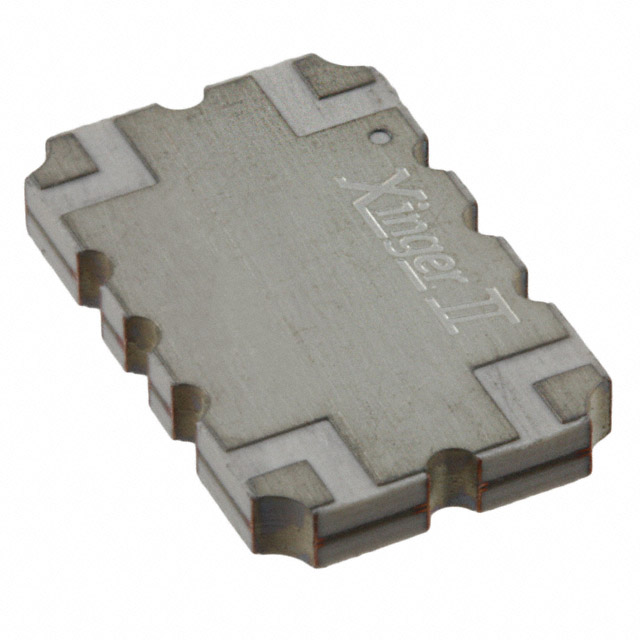

XC0900A-03S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XC0900A-03S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	XC0900A-03S
Manufacturer	Anaren
Description	RF DIR COUPLER 811MHZ-1GHZ SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 58011 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.641

Product parameter
Data sheet

Product parameter

Part Number	XC0900A-03S	Manufacturer	Anaren
Description	RF DIR COUPLER 811MHZ-1GHZ SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58011 pcs	Data sheet	XC0900A-03S
Category	RF/IF and RFID	Supplier Device Package	SMD
Series	Xinger II®	Return Loss	24.9dB
Power - Max	175W	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Other Names	1173-1122-2 XC0900A-03S REEL 3DB XC0900A-03SR XC0900A03S
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	23dB
Insertion Loss	0.15dB	Frequency	811MHz ~ 1GHz
Detailed Description	RF Directional Coupler AMPS 811MHz ~ 1GHz 3dB 175W 4-SMD, No Lead	Coupling Factor	3dB
Coupler Type	Standard	Applications	AMPS
