MB5JJN0900-S1

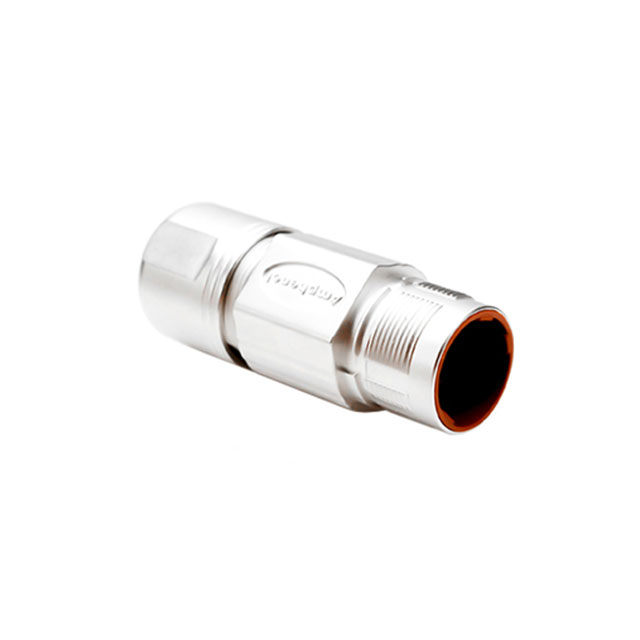

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB5JJN0900-S1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MB5JJN0900-S1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MB5JJN0900-S1 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN RCPT HSNG MALE 9POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.813 | $3.647 | $3.315 | $3.149 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.067 | $2.735 | $2.569 | $2.271 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MB5JJN0900-S1 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 9POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14757 pcs | Data sheet | MB5JJN0900-S1 Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | M23-9 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | MotionGrade™ Elite M23 Power Series, Checkmate™ Quick Locking |
| Packaging | Bulk | Other Names | 889-2001 |
| Orientation | Keyed | Operating Temperature | -20°C ~ 130°C |
| Number of Positions | 9 (4 + 4 Power + PE) | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell | Fastening Type | Push-Twist |
| Detailed Description | 9 (4 + 4 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 1.0mm (4), 2.0mm (5) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
