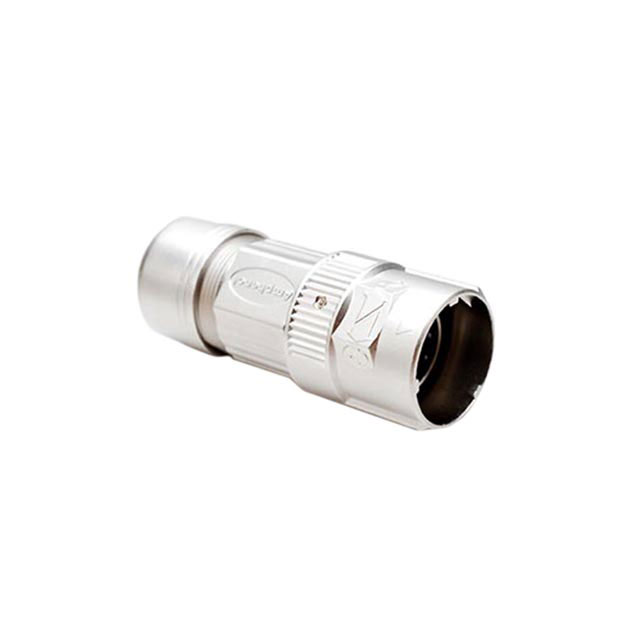

MA5CAE1700-S1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA5CAE1700-S1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA5CAE1700-S1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA5CAE1700-S1 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSNG F/M 17POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.28 | $4.80 | $4.68 | $4.32 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.08 | $3.72 | $3.48 | $3.192 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA5CAE1700-S1 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN PLUG HSNG F/M 17POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10846 pcs | Data sheet | MA5CAE1700-S1 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets or Male Pins |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | M23-17 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | MotionGrade™ Elite M23 Signal Series, Checkmate™ Quick Locking |
| Packaging | Bulk | Other Names | 889-1974 |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 130°C |
| Number of Positions | 17 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Coupling Nut | Fastening Type | Push-Twist |
| Detailed Description | 17 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut | Coupling Nut Material, Plating | Zinc Die Cast, Nickel |
| Coupling Nut Diameter | 1.102" (27.99mm) | Contact Type | Crimp |
| Contact Size | 1.0mm | Contact Shape | Circular |
| Connector Type | Plug Housing |
