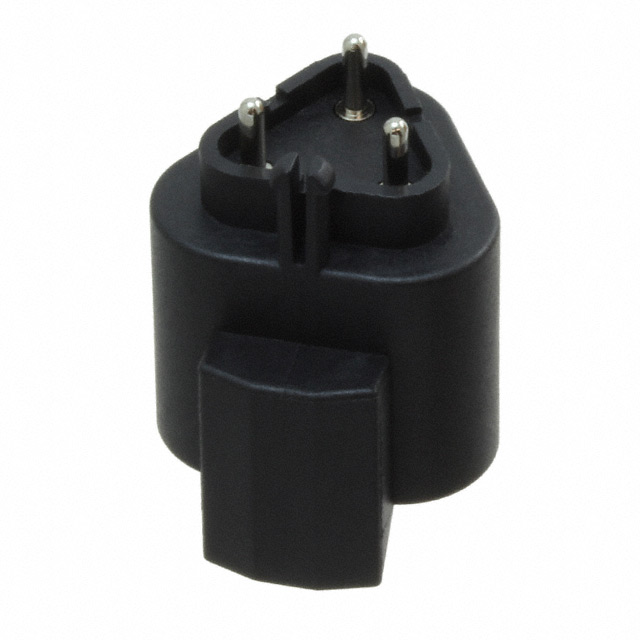

AT04-3P-BM03
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AT04-3P-BM03 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AT04-3P-BM03 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AT04-3P-BM03 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | AT RECEPTACLE, 3 PIN (NICKEL) PC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.885 | $0.805 | $0.755 | $0.723 | $0.69 | |
| 300 pcs | 540 pcs | 1020 pcs | 2520 pcs | ||
| $0.624 | $0.575 | $0.493 | $0.46 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AT04-3P-BM03 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | AT RECEPTACLE, 3 PIN (NICKEL) PC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77351 pcs | Data sheet | Board|Lock™ Series CatalogAT04-3P-BM03 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AT Series™ |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 889-1891 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.835" (21.21mm) | Insulation Color | Black |
| Ingress Protection | IP67 | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 3 position |
| Current Rating | 13A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Nickel |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial |
