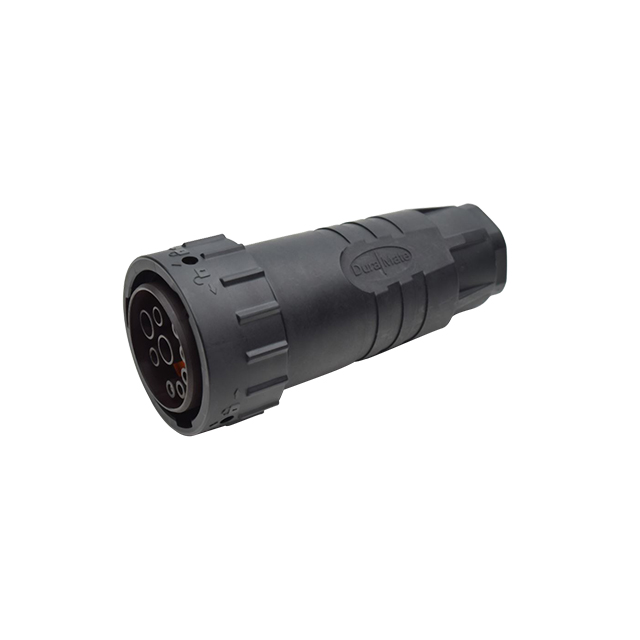

AHDP06-24-91S-BS1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHDP06-24-91S-BS1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHDP06-24-91S-BS1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHDP06-24-91S-BS1 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSNG FMALE 9POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.473 | $6.747 | $6.465 | $6.061 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.859 | $5.535 | $5.374 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHDP06-24-91S-BS1 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN PLUG HSNG FMALE 9POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5649 pcs | Data sheet | AHDP06-24-91S-BS1 DrawingIBIC Series Brochure |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-91 | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | AHDP Dura|Mate™ |
| Packaging | Bulk | Other Names | 889-2848 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 9 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA), Nylon |
| Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof | Includes | - |
| Housing Color | Black | Features | Backshell, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 9 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut |
| Coupling Nut Material, Plating | Polyamide (PA), Nylon | Coupling Nut Diameter | 1.906" (48.40mm) |
| Contact Type | Crimp | Contact Size | 8 (2), 12 (2), 16 (5) |
| Contact Shape | Circular | Connector Type | Plug Housing |
