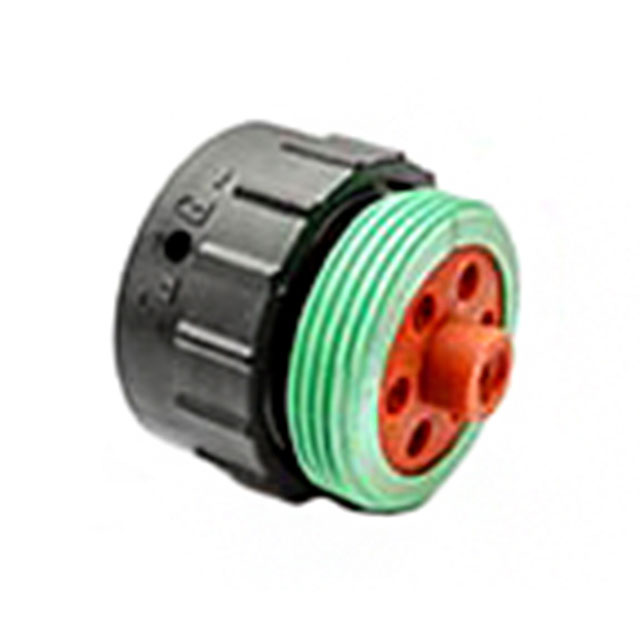

AHDP06-24-07SN-WTA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHDP06-24-07SN-WTA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHDP06-24-07SN-WTA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHDP06-24-07SN-WTA |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSNG FMALE 7POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.507 | $4.098 | $3.996 | $3.688 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.484 | $3.176 | $2.971 | $2.725 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHDP06-24-07SN-WTA | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN PLUG HSNG FMALE 7POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12367 pcs | Data sheet | Dura|Mate™ CatalogAHDP06-24-07SN-WTA Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-7 | Shell Material | Thermoplastic |
| Shell Finish | - | Series | AHDP Dura|Mate™ |
| Packaging | Bulk | Other Names | 889-2547 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 7 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Coupling Nut | Fastening Type | Bayonet Lock |
| Detailed Description | 7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Coupling Nut Material, Plating | Thermoplastic |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 12 (6), 8 Radsok (1) | Contact Shape | Circular |
| Connector Type | Plug Housing |
