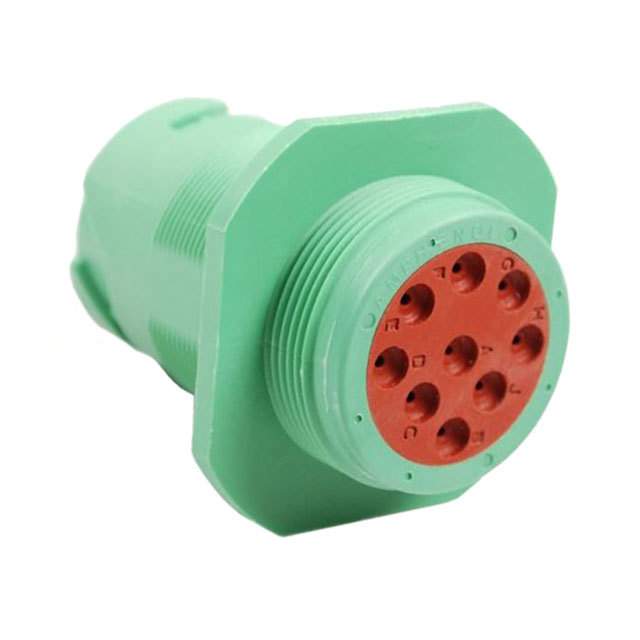

AHD17-9-1939PES80
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHD17-9-1939PES80 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHD17-9-1939PES80 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHD17-9-1939PES80 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN RCPT HSNG MALE 9POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.929 | $2.802 | $2.547 | $2.42 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.356 | $2.101 | $1.974 | $1.745 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHD17-9-1939PES80 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 9POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18562 pcs | Data sheet | A Series CatalogAHD17-9-1939PES80 Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | AHD™ |
| Packaging | Bulk | Other Names | 889-1432 AHD17-9-1939PES80-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 9 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Green |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 9 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
