3822-40001

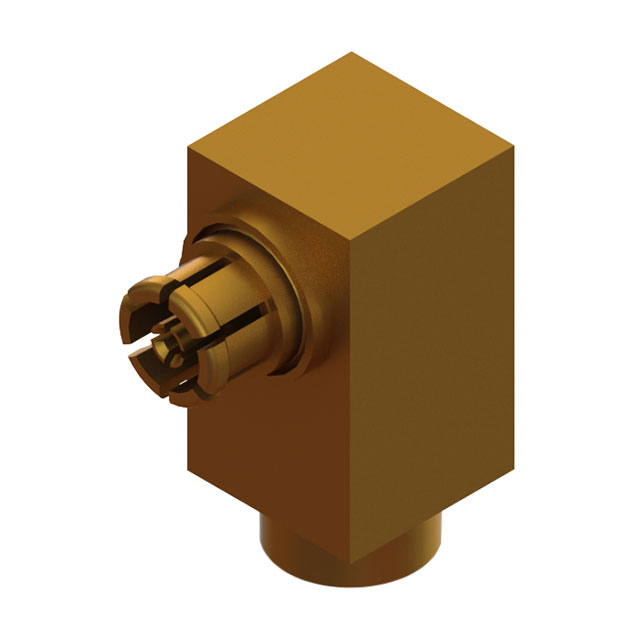

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3822-40001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3822-40001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3822-40001 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | CONN SMPS JACK R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $18.113 | $17.048 | $16.515 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $15.45 | $14.597 | $14.171 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3822-40001 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | CONN SMPS JACK R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2168 pcs | Data sheet | 3822-40001 Drawing |
| Category | Connectors, Interconnects | Shield Termination | - |
| Series | - | Packaging | Bulk |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Cycles | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 40GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMPS Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMPS | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | 0.047" Semi Rigid |
| Body Material | Beryllium Copper | Body Finish | Gold |
