3269-4001

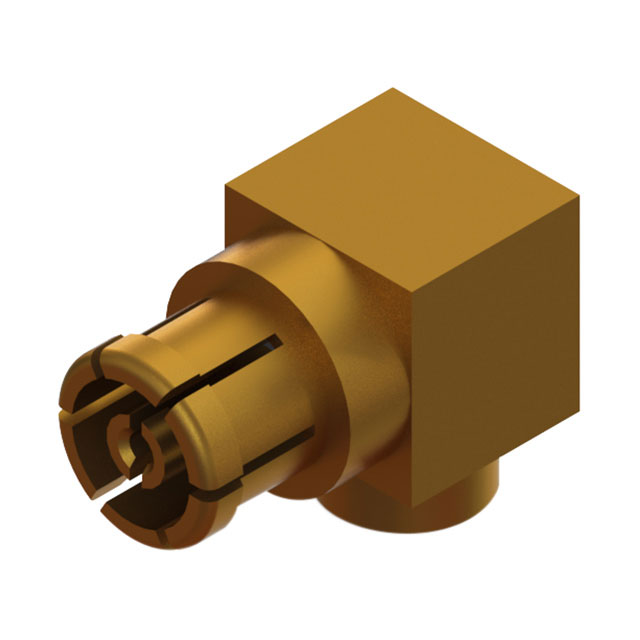

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3269-4001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3269-4001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3269-4001 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | CONN SMPM JACK R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $7.967 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3269-4001 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | CONN SMPM JACK R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4914 pcs | Data sheet | 3269-4001 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Mating Cycles | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 20GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMPM Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | SMPM |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | 0.047" Semi Rigid | Body Material | Beryllium Copper |
| Body Finish | Gold |
