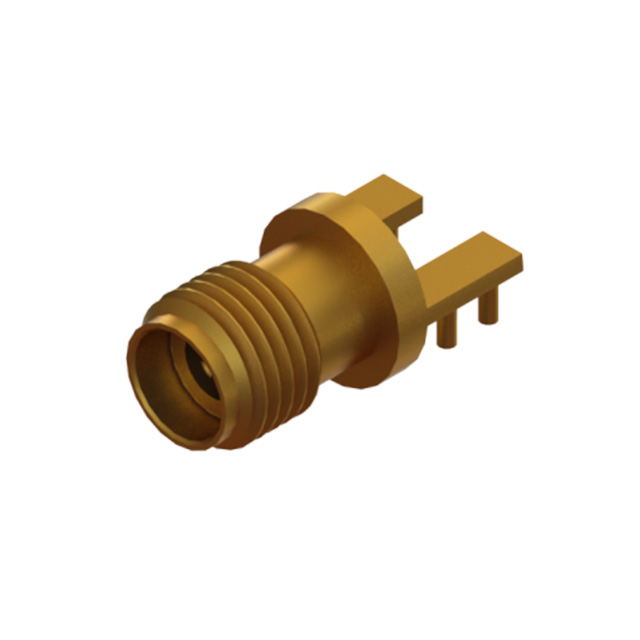

1521-00002
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1521-00002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1521-00002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1521-00002 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | 2.92MM JACK R/A 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $18.526 | $17.435 | $16.89 | $15.80 | $14.928 | |
- Product parameter
Product parameter
| Part Number | 1521-00002 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | 2.92MM JACK R/A 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2215 pcs | Data sheet | |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.25dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 40GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | - |
| Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
