1285-6004

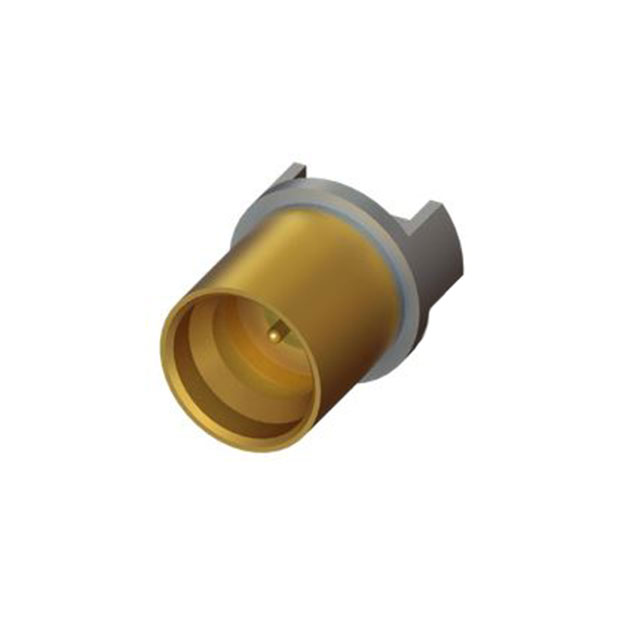

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1285-6004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1285-6004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1285-6004 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | CONN SMP PLUG STR 50OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.013 | $9.038 | $8.66 | $8.118 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.848 | $7.415 | $7.198 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1285-6004 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | CONN SMP PLUG STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5261 pcs | Data sheet | 1285-6004 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 18GHz |
| Features | Smooth Bore | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMP Connector Plug, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | SMP | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Stainless Steel | Body Finish | Gold |
