1138-6009

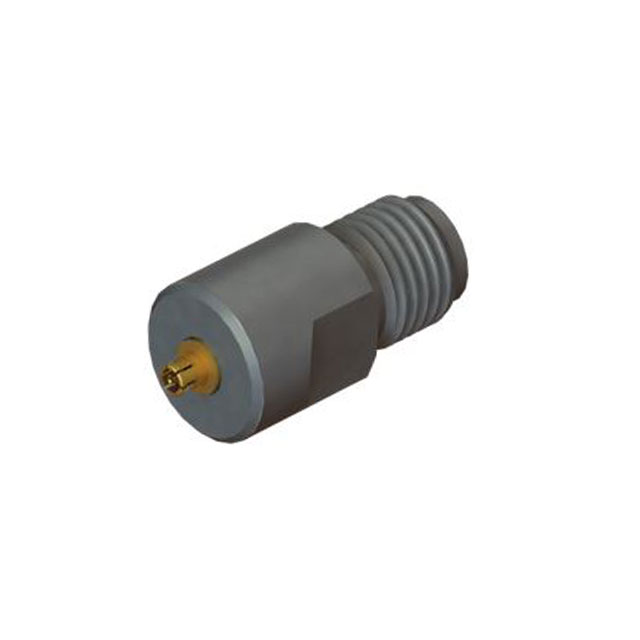

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1138-6009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1138-6009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1138-6009 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | CONN ADAPT SMPS JACK-2.92MM JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $49.576 | $46.659 | $45.201 | $42.285 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1138-6009 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | CONN ADAPT SMPS JACK-2.92MM JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 718 pcs | Data sheet | 1138-6009 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Operating Temperature | - | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Frequency - Max | 40GHz |
| Features | - | Fastening Type | Snap-On, Threaded |
| Dielectric Material | Polyetherimide (PEI) | Detailed Description | Adapter Coaxial Connector SMPS Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohm |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Jack, Female Socket | Convert From (Adapter End) | SMPS Jack, Female Socket |
| Conversion Type | Between Series | Center Gender | Female to Female |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Body Material | Beryllium Copper; Stainless Steel | Body Finish | Gold; Passivated |
| Adapter Type | Jack to Jack | Adapter Series | SMPS to 2.92mm |
