Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > ESRM22290

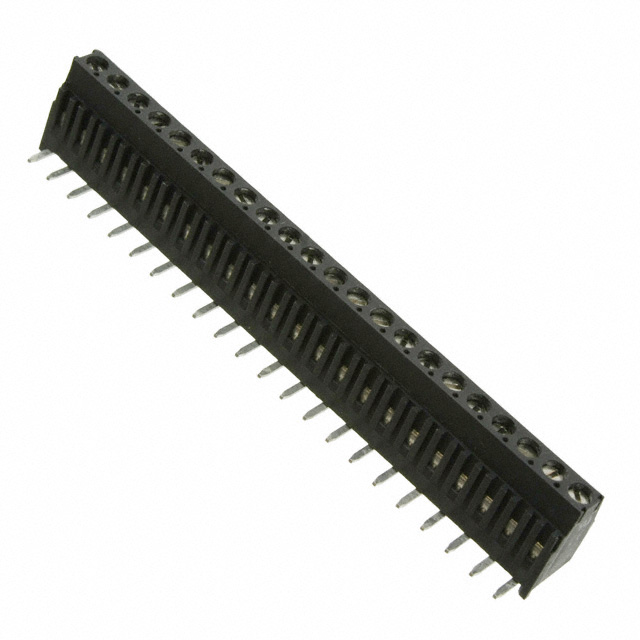

ESRM22290

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESRM22290 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ESRM22290
Manufacturer	Amphenol Pcd
Description	CONN TERM EURO 22 POS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 31185 pcs
Reference Price (In US Dollars)	400 pcs
Reference Price (In US Dollars)	$1.214

Product parameter
Data sheet

Product parameter

Part Number	ESRM22290	Manufacturer	Amphenol Pcd
Description	CONN TERM EURO 22 POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31185 pcs	Data sheet	ESRM22290
Category	Connectors, Interconnects	Wire Termination	Screw - Rising Cage Clamp
Wire Gauge	14-30 AWG	Voltage	150V
Torque - Screw	0.25 Nm (2.2 Lb-In)	Series	ESRM
Screw Thread	-	Screw Material - Plating	Copper Alloy - Nickel Plated
Positions Per Level	22	Pitch	0.150" (3.81mm)
Packaging	Tray	Other Names	Q4992176
Operating Temperature	-40°C ~ 110°C	Number of Levels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Orientation	Vertical with Board	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA66), Nylon 6/6
Features	-	Detailed Description	22 Position Wire to Board Terminal Block Vertical with Board 0.150" (3.81mm) Through Hole
Current	12A	Contact Material - Plating	Copper Alloy - Tin Plated
Color	Black	Clamp Material - Plating	Copper Alloy - Nickel Plated
