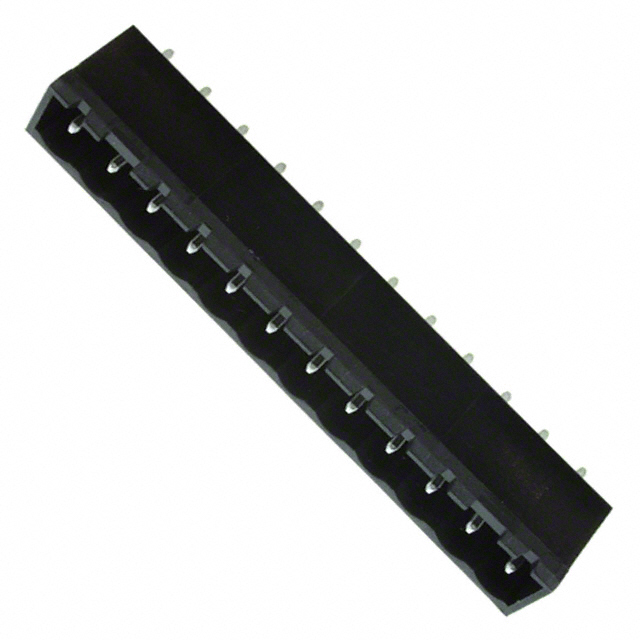

ELFH12250
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELFH12250 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELFH12250 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELFH12250 |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK HDR 12POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.096 | $0.828 | $0.768 | $0.69 | $0.673 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.589 | $0.539 | $0.488 | $0.429 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELFH12250 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70546 pcs | Data sheet | ELFH Series Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | ELFH | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | APC1252 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.319" (8.10mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | Vertical |
| Features | - | Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
