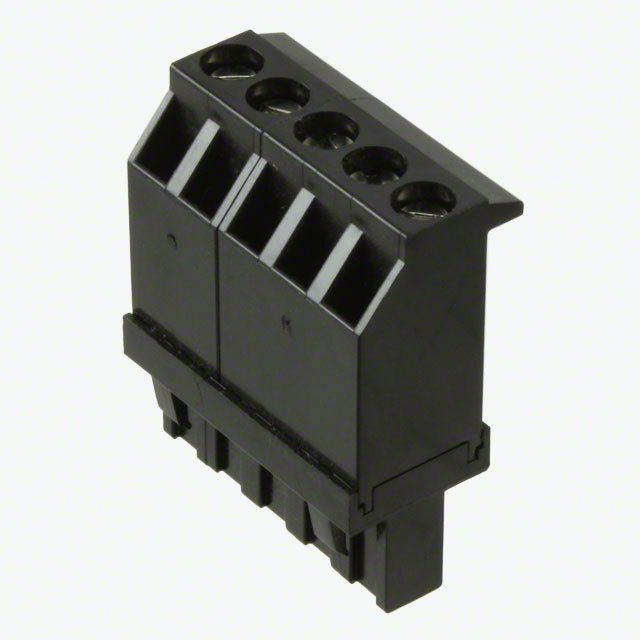

ELFF05230
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELFF05230 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELFF05230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELFF05230 |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK PLUG 5POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.977 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELFF05230 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK PLUG 5POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30869 pcs | Data sheet | ELFF Series Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 7.87mm, 12.45mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12 AWG, 14-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | ELFF | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | 90° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | APC1177 | Operating Temperature | 105°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.218" (30.94mm) | Ingress Protection | - |
| Housing Material | Polyphenylene Oxide (PPO) | Header Orientation | - |
| Features | Retention Latches (Wire Side) | Detailed Description | 5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
