ELFB08230

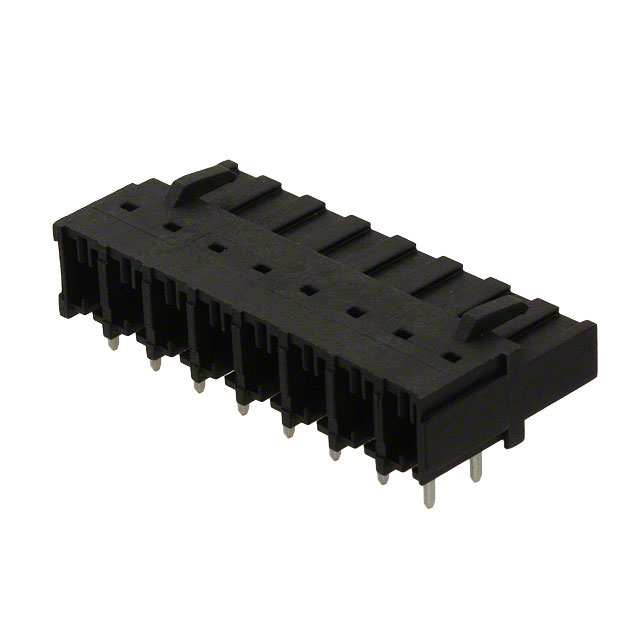

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELFB08230 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELFB08230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELFB08230 |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK HDR 8POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.723 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELFB08230 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54432 pcs | Data sheet | ELFB Series Part Numbering |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Female Sockets |
| Torque - Screw | - | Termination Style | Solder |
| Series | ELFB | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | APC1219 | Operating Temperature | 125°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.391" (9.93mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Header Orientation | 90°, Right Angle |
| Features | Interlocking (Side), Retention Latches | Detailed Description | 8 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.123" (3.12mm) | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
