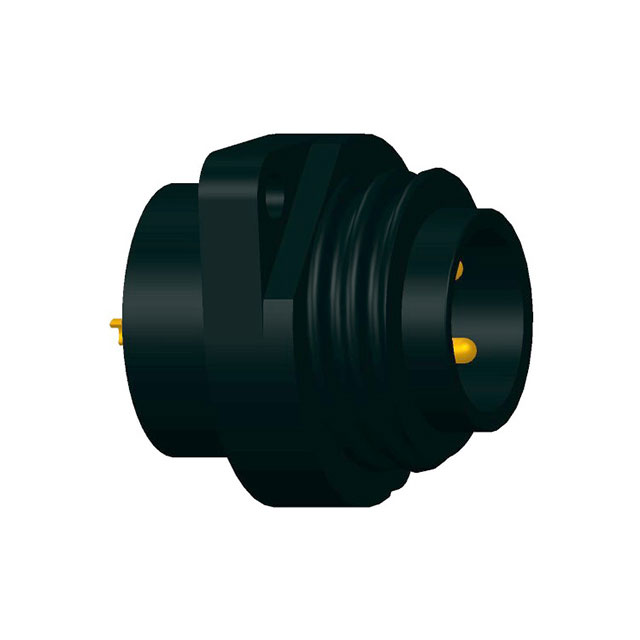

PWF-03PMMS-SC7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PWF-03PMMS-SC7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PWF-03PMMS-SC7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PWF-03PMMS-SC7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT MALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.878 | $2.759 | $2.519 | $2.399 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.279 | $2.039 | $1.919 | $1.679 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PWF-03PMMS-SC7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23486 pcs | Data sheet | PWF-03PMMS-SC7001 Drawing |
| Category | Connectors, Interconnects | Termination | Solder Cup |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | PWF | Packaging | Bulk |
| Other Names | 1754-1123 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 (2 + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 3 (2 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 12A |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
