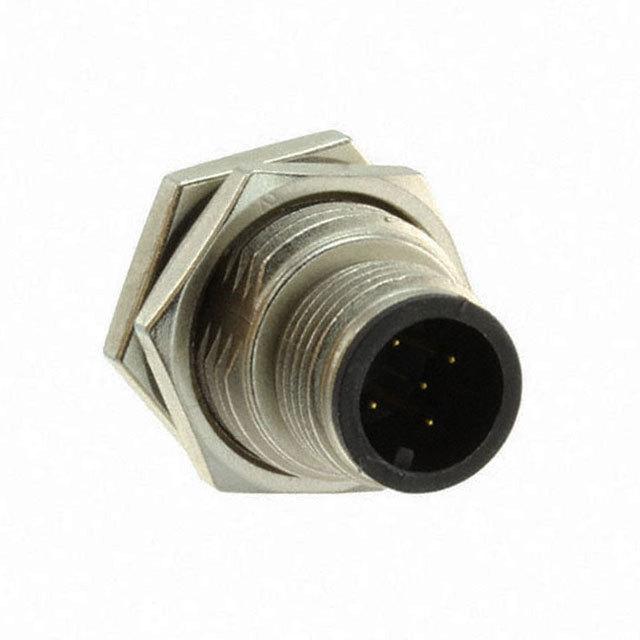

M12A-05PMMS-SF8001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M12A-05PMMS-SF8001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M12A-05PMMS-SF8001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M12A-05PMMS-SF8001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.256 | $2.165 | $1.985 | $1.895 | $1.804 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.579 | $1.534 | $1.308 | $1.218 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M12A-05PMMS-SF8001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29046 pcs | Data sheet | M12A-xxPMMS-SF800x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 60VAC/DC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | M12-5 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | M | Packaging | Tray |
| Other Names | 1754-1198 | Orientation | A |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA), Nylon, Glass Filled | Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 4A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
