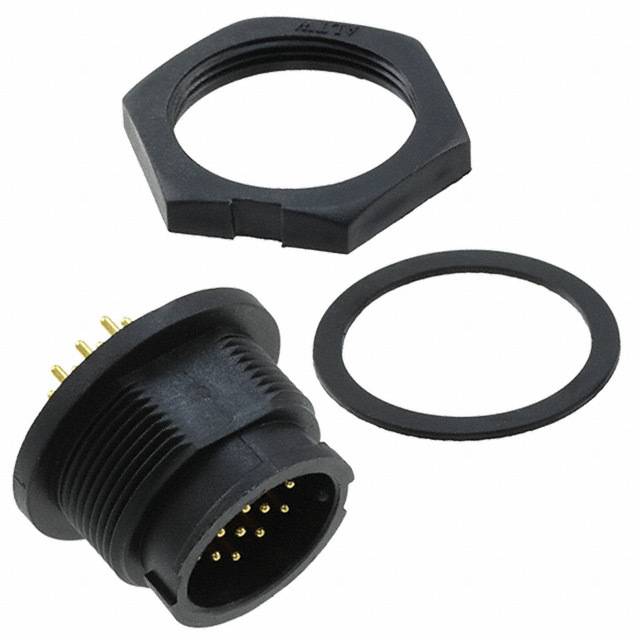

CD-14PMMP-LC7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CD-14PMMP-LC7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CD-14PMMP-LC7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CD-14PMMP-LC7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT MALE 14POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.714 | $3.552 | $3.229 | $3.067 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.987 | $2.664 | $2.502 | $2.212 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CD-14PMMP-LC7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT MALE 14POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14302 pcs | Data sheet | CD-14PMMP-LC7001 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | C |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | Middle | Packaging | Tray |
| Other Names | 1754-1111 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 14 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA), Nylon, Glass Filled | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 14 Position Circular Connector Receptacle, Male Pins Solder Gold | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
