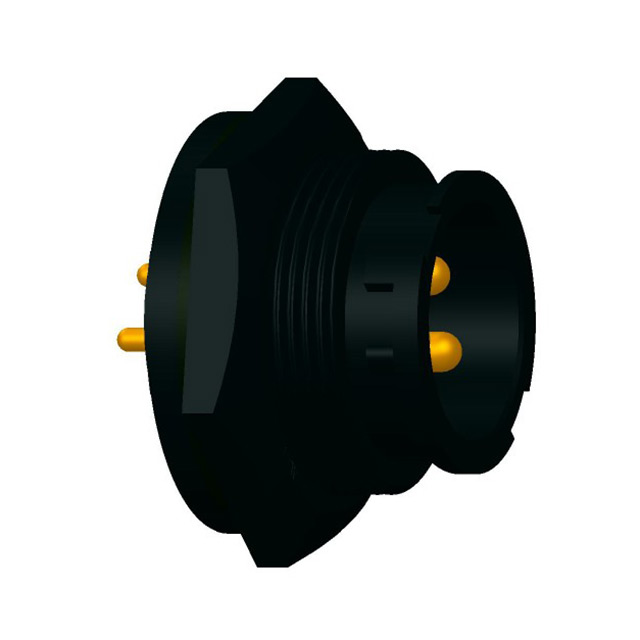

CC-03PMMP-LC7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CC-03PMMP-LC7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CC-03PMMP-LC7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CC-03PMMP-LC7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT MALE 3POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.696 | $2.582 | $2.358 | $2.245 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.133 | $1.909 | $1.796 | $1.572 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CC-03PMMP-LC7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT MALE 3POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20047 pcs | Data sheet | CC-03PMMP-LC7001 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | C |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | Middle | Packaging | Tray |
| Other Names | 1754-1101 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA), Nylon, Glass Filled | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Solder Gold | Current Rating | 20A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
