BD-05PMFS-QC8001

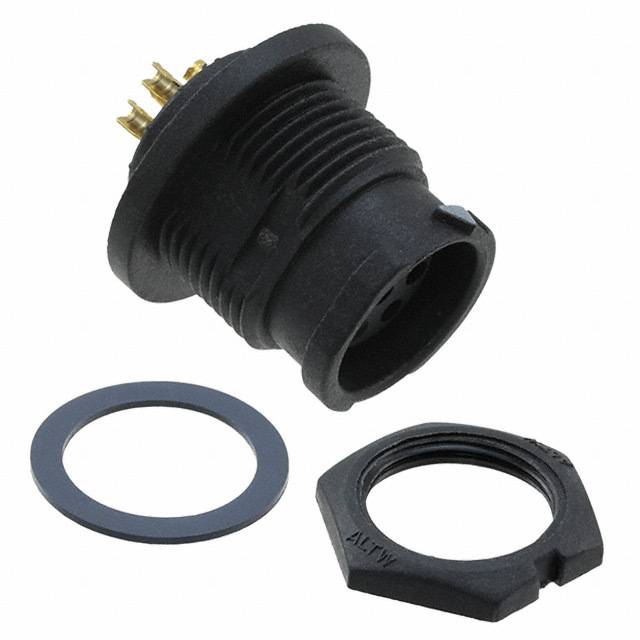

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD-05PMFS-QC8001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BD-05PMFS-QC8001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BD-05PMFS-QC8001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.512 | $2.408 | $2.198 | $2.094 | $1.989 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.78 | $1.675 | $1.466 | $1.392 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BD-05PMFS-QC8001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27034 pcs | Data sheet | BD-05PMFS-QC8001 Drawing |
| Category | Connectors, Interconnects | Termination | Solder Cup |
| Shell Size, MIL | - | Shell Size - Insert | B |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | X-Lok | Packaging | Tray |
| Other Names | 1754-1160 | Orientation | Keyed |
| Operating Temperature | -20°C ~ 80°C | Number of Positions | 5 (Data) |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 5 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 5A |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
