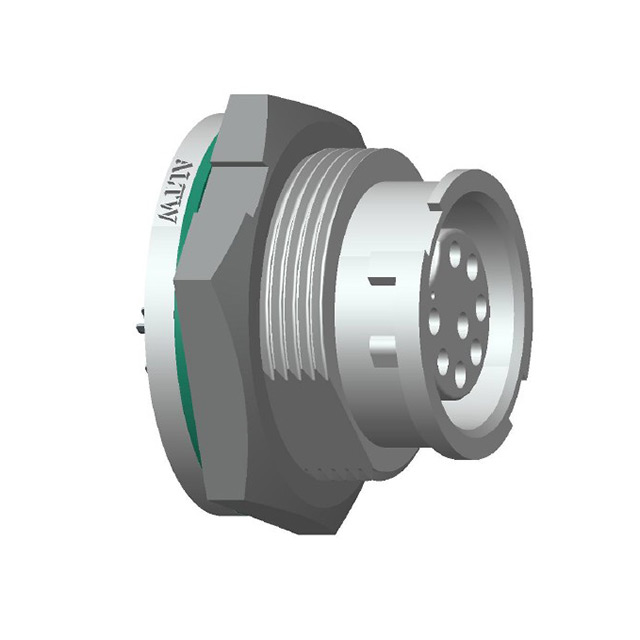

ACD-08PMFS-LC7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACD-08PMFS-LC7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACD-08PMFS-LC7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACD-08PMFS-LC7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT FMALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.457 | $2.355 | $2.15 | $2.047 | $1.945 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.74 | $1.638 | $1.433 | $1.361 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACD-08PMFS-LC7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT FMALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27657 pcs | Data sheet | ACD-08PMFS-LC7001 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | C |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | Middle | Packaging | Tray |
| Other Names | 1754-1104 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 8 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA), Nylon, Glass Filled | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 8 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
