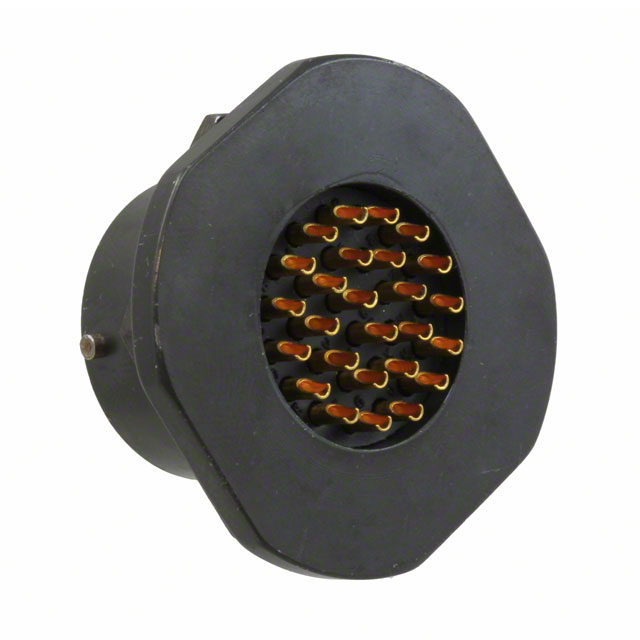

PT07A-16-26P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT07A-16-26P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT07A-16-26P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT07A-16-26P |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 26POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $33.71 | $30.725 | $27.214 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $25.634 | $24.229 | $23.351 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT07A-16-26P | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 26POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 1350 pcs | Data sheet | PT07A DrawingPT Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 16-26 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | PT07A1626P U71-146716-26P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 26 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | - |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 26 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
