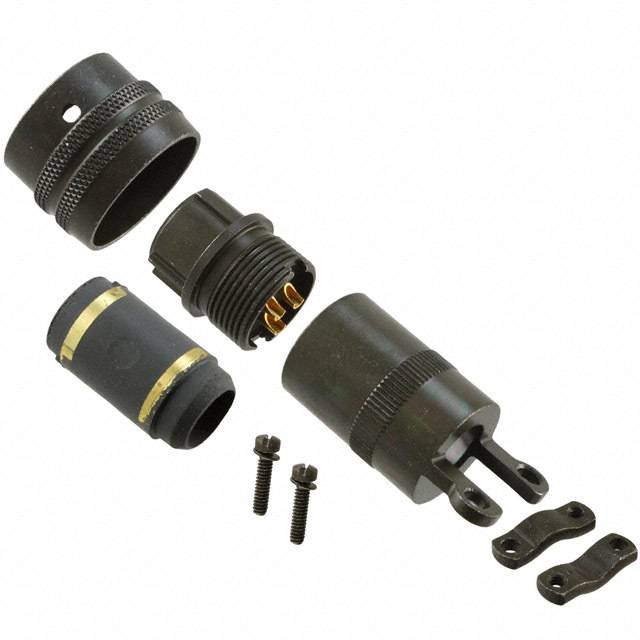

PT06J-12-3S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT06J-12-3S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT06J-12-3S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT06J-12-3S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN PLUG FMALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $10.561 | $9.234 | $8.997 | $8.476 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $7.908 | $7.008 | $6.629 | $6.487 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT06J-12-3S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN PLUG FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 5249 pcs | Data sheet | PT Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 1000VAC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 12-3 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | 71-573893-03S PT06J12-3S PT06J123S U71-573893-03S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | - |
| Features | Strain Relief | Fastening Type | Bayonet Lock |
| Detailed Description | 3 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
