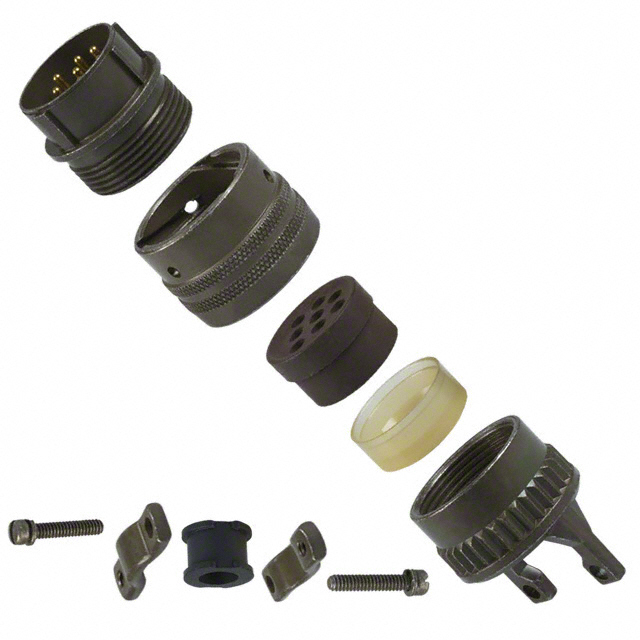

PT06E-16-8P(SR)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT06E-16-8P(SR) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT06E-16-8P(SR) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT06E-16-8P(SR) |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN PLUG MALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $16.166 | $14.192 | $13.826 | $12.948 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.071 | $10.681 | $9.949 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT06E-16-8P(SR) | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN PLUG MALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3325 pcs | Data sheet | PT06E(SR) DrawingPT Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 16-8 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | PT06E-16-8P(SR)-ND PT06E16-8P(SR) PT06E168PSR U71-144616-08P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 8 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut | Fastening Type | Bayonet Lock |
| Detailed Description | 8 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | Aluminum, Olive Drab Cadmium | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
