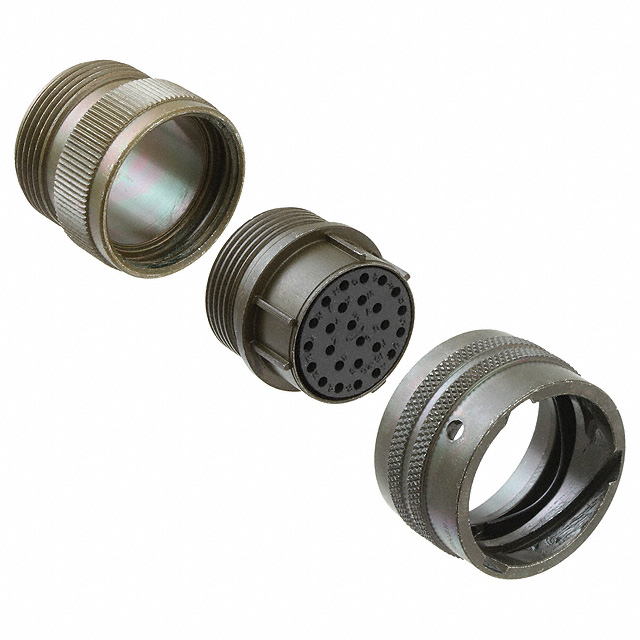

PT06A-16-26S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT06A-16-26S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT06A-16-26S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT06A-16-26S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN PLUG FMALE 26POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT06A-16-26S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN PLUG FMALE 26POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 4436 pcs | Data sheet | PT Series CatalogPT06A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 16-26 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | PT06A16-26S PT06A1626S U71-146616-26S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 26 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insert Material | Neoprene |
| Ingress Protection | - | Features | Backshell, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 26 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Olive Drab |
| Cable Opening | - | Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
