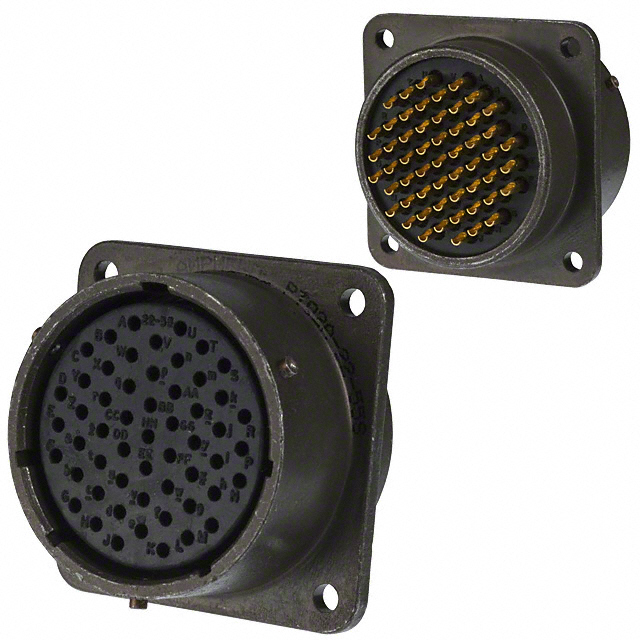

PT02A-22-55S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT02A-22-55S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT02A-22-55S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT02A-22-55S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT FMALE 55POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $19.365 | $16.988 | $16.372 | $15.227 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.435 | $12.763 | $11.883 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT02A-22-55S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT FMALE 55POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3084 pcs | Data sheet | PT Series CatalogPT02A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 22-55 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | PT02A-22-55S-ND PT02A22-55S PT02A2255S U71-146222-55S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 55 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | - |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 55 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
