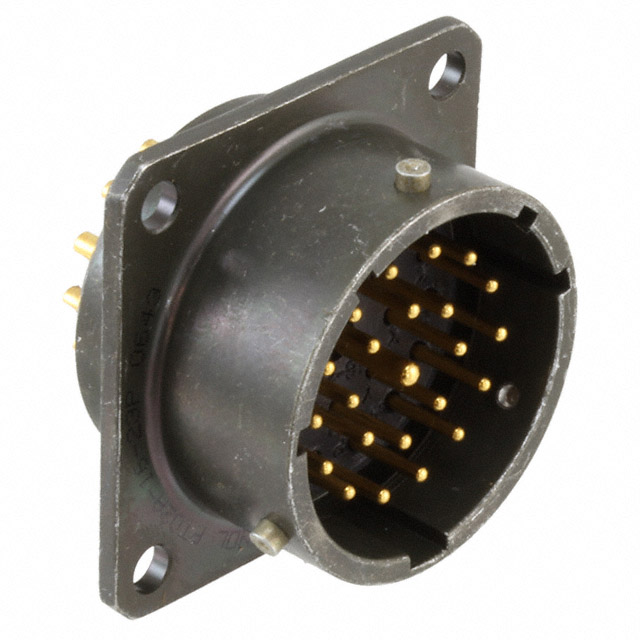

PT02A-16-23P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT02A-16-23P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT02A-16-23P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT02A-16-23P |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 23POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $6.12 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT02A-16-23P | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 23POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 5258 pcs | Data sheet | PT Series CatalogPT02A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 16-23 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-DTL-26482 Series I, PT | Packaging | Bulk |
| Other Names | PT02A1623P U71-146216-23P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 23 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | - |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 23 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
