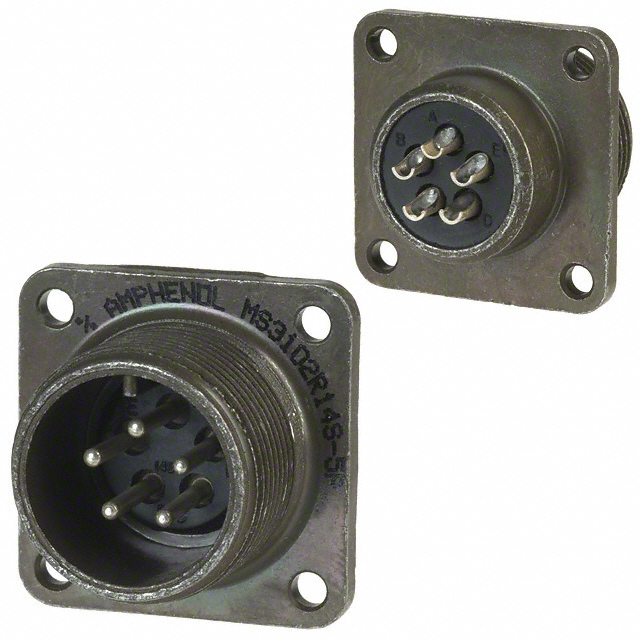

MS3102R14S-5P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102R14S-5P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102R14S-5P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102R14S-5P |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $4.075 | $3.529 | $3.476 | $3.282 | $3.264 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.07 | $2.911 | $2.841 | $2.77 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102R14S-5P | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 13435 pcs | Data sheet | MIL-(DTL-)5015 Standard Cylindrical CatalogMS3102R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 14S-5 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | Military, MIL-DTL-5015 | Packaging | Bulk |
| Other Names | 10-190214-05P AMS3102R14S-5P-ND MS3102R-14S-5P MS3102R-14S-5P-ND MS3102R14S-5P-MIL |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | Environment Resistant |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Olive Drab | Cable Opening | 0.750" (19.05mm) |
| Backshell Material, Plating | - | Applications | Marine, Military |
