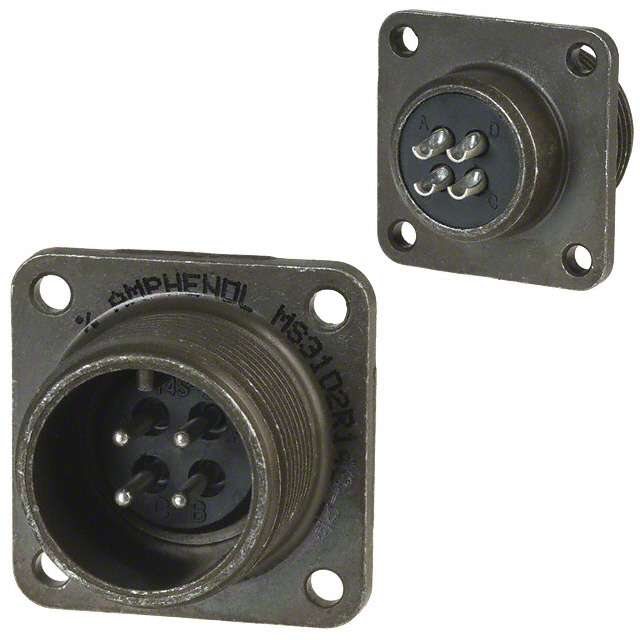

MS3102R14S-2P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102R14S-2P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102R14S-2P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102R14S-2P |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $3.987 | $3.451 | $3.399 | $3.209 | $3.192 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.002 | $2.847 | $2.778 | $2.709 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102R14S-2P | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 13601 pcs | Data sheet | MIL-(DTL-)5015 Standard Cylindrical CatalogMS3102R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 14S-2 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | Military, MIL-DTL-5015 | Packaging | Bulk |
| Other Names | 10-190214-02P AMS3102R14S-2P-ND MS3102R-14S-2P MS3102R-14S-2P-ND MS3102R14S-2P-MIL |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insert Material | Neoprene |
| Ingress Protection | Environment Resistant | Features | - |
| Fastening Type | Threaded | Detailed Description | 4 Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Olive Drab |
| Cable Opening | 0.750" (19.05mm) | Backshell Material, Plating | - |
| Applications | Marine, Military |
