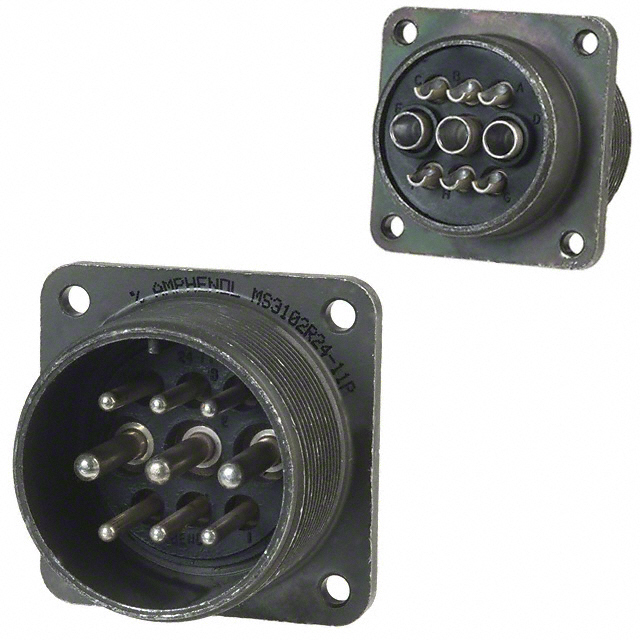

MS3102R-24-11P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102R-24-11P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102R-24-11P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102R-24-11P |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 9POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $11.373 | $9.944 | $9.689 | $9.128 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $8.517 | $7.548 | $7.14 | $6.987 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102R-24-11P | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 9POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5378 pcs | Data sheet | MIL-(DTL-)5015 Standard Cylindrical CatalogMS3102R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 24-11 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | Military, MIL-DTL-5015 | Packaging | Bulk |
| Other Names | AMS3102R-24-11P-ND MS3102R-24-11P-MIL MS3102R24-11P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 9 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insert Material | Neoprene |
| Ingress Protection | Environment Resistant | Features | - |
| Fastening Type | Threaded | Detailed Description | 9 Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Olive Drab |
| Cable Opening | 1.375" (34.93mm) | Backshell Material, Plating | - |
| Applications | Marine, Military |
