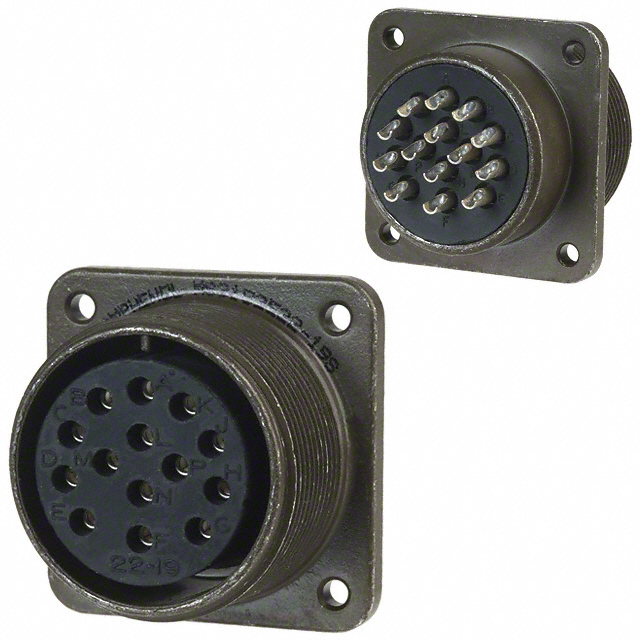

MS3102E22-19S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3102E22-19S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3102E22-19S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3102E22-19S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT FMALE 14POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $6.884 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3102E22-19S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT FMALE 14POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5082 pcs | Data sheet | MIL-(DTL-)5015 Standard Cylindrical CatalogMS3102E Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 22-19 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | MIL-5015 Type | Packaging | Bulk |
| Other Names | AMS3102E-22-19S MS3102E-22-19S MS3102E-22-19S-ND U10-169222-19S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 14 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | Neoprene | Ingress Protection | Environment Resistant |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 14 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Olive Drab | Cable Opening | 1.250" (31.75mm) |
| Backshell Material, Plating | - | Applications | Marine, Military |
