97-3106A-28-16S(946)

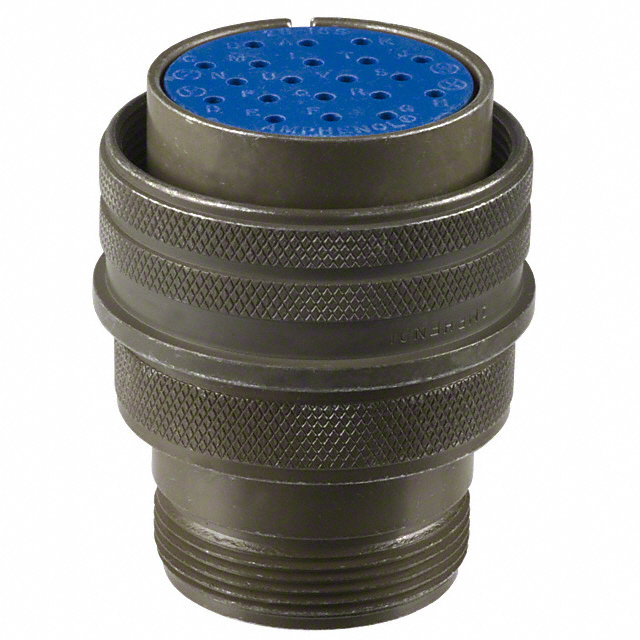

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 97-3106A-28-16S(946) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 97-3106A-28-16S(946) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 97-3106A-28-16S(946) |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN PLUG FMALE 20POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $42.946 | $40.877 | $37.773 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $36.738 | $34.668 | $34.409 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 97-3106A-28-16S(946) | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN PLUG FMALE 20POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 939 pcs | Data sheet | 97-3106A Drawing97 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 28-16 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Zinc Alloy |
| Series | 97 | Packaging | Bulk |
| Other Names | 973106A2816S946 C93-830394-16S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | - |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 20 Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Aluminum Alloy, Black Zinc Alloy | Applications | Automotive, Industrial |
