97-3102A-16S-1P(946)

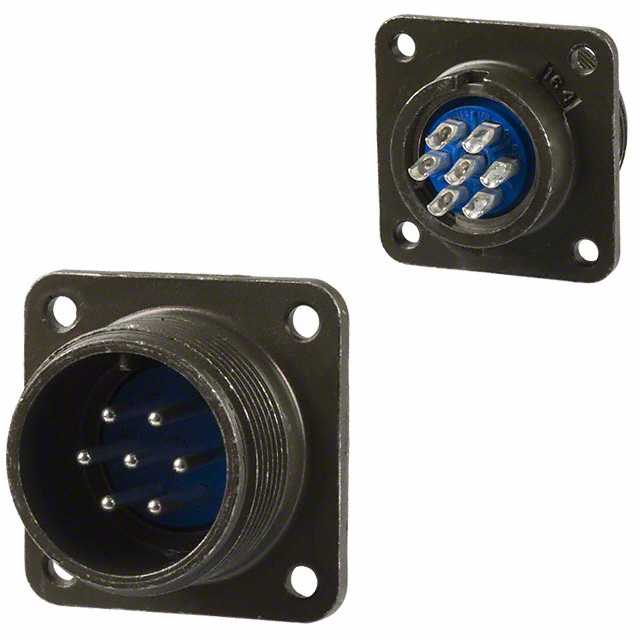

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 97-3102A-16S-1P(946) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 97-3102A-16S-1P(946) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 97-3102A-16S-1P(946) |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $11.105 | $9.711 | $9.462 | $8.914 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $8.316 | $7.37 | $6.972 | $6.822 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 97-3102A-16S-1P(946) | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4976 pcs | Data sheet | 97 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 16S-1 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Zinc Alloy |
| Series | 97 | Packaging | Bulk |
| Other Names | 973102A16S1P946 C93-830348-01P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 7 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 7 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Automotive, Industrial |
