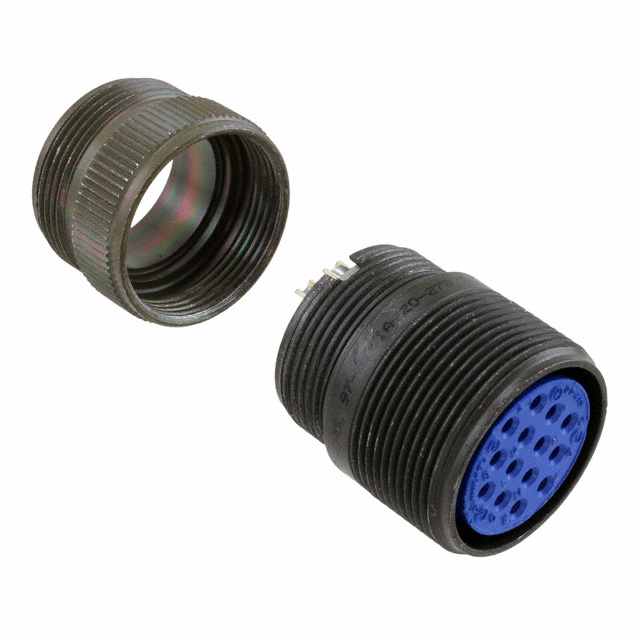

97-3101A-20-27S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 97-3101A-20-27S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 97-3101A-20-27S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 97-3101A-20-27S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT FMALE 14POS SOLDER CUP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $14.06 | $12.344 | $12.026 | $11.262 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.499 | $9.29 | $8.653 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 97-3101A-20-27S | Manufacturer | Amphenol Industrial |
|---|---|---|---|
| Description | CONN RCPT FMALE 14POS SOLDER CUP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4035 pcs | Data sheet | 97 Series Catalog97-3101A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 20-27 |
| Shell Material | Aluminum Alloy | Shell Finish | Olive Drab Chromate over Cadmium |
| Series | 97 | Packaging | Bulk |
| Other Names | 973101A2027S U10-820031-27S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 14 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | - | Ingress Protection | - |
| Features | Backshell | Fastening Type | Threaded |
| Detailed Description | 14 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Chromate over Cadmium | Applications | Automotive, Industrial |
