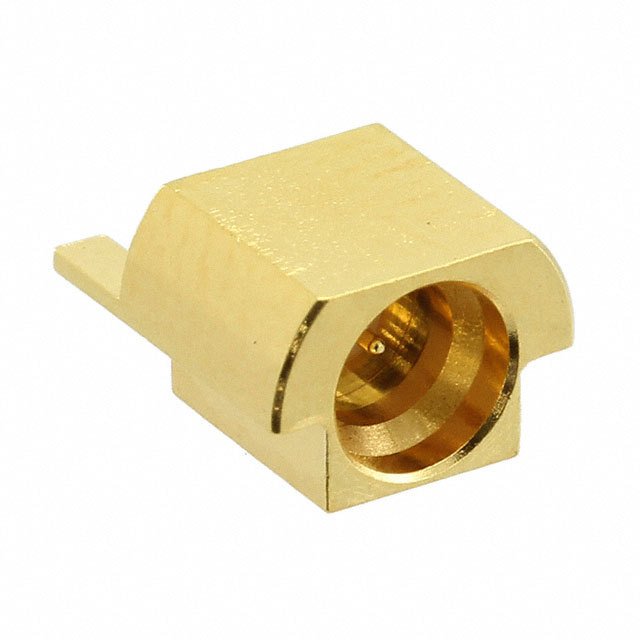

SMP-MSFD-PCE-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMP-MSFD-PCE-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMP-MSFD-PCE-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMP-MSFD-PCE-1 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMP JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.985 | $2.859 | $2.61 | $2.486 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.362 | $2.113 | $1.989 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMP-MSFD-PCE-1 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMP JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19717 pcs | Data sheet | SMP-MSFD-PCE-1 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Original-Reel® |
| Other Names | ARF2270DKR | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Board Edge, Cutout; Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 18GHz | Features | Full Detent |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMP Connector Jack, Male Pin 50 Ohm Board Edge, Cutout; Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Male Pin | Connector Style | SMP |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Beryllium Copper |
| Body Finish | Gold |
