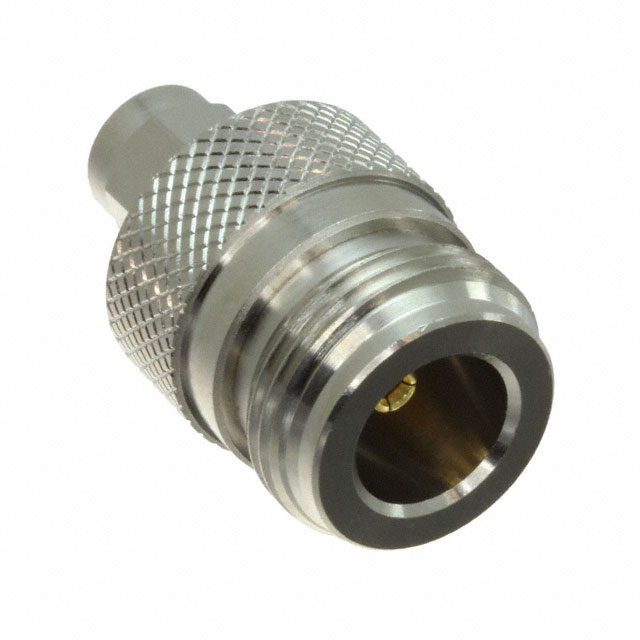

APH-SMAP-NJ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APH-SMAP-NJ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APH-SMAP-NJ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APH-SMAP-NJ |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT SMA PLUG TO N JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.785 | $5.259 | $5.128 | $4.733 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.47 | $4.076 | $3.813 | $3.497 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APH-SMAP-NJ | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT SMA PLUG TO N JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11007 pcs | Data sheet | APH-SMAP-NJ Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | APH-SMAP-NJ-ND APHSMAPNJ ARF3097 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohm | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | SMA Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Plug to Jack |
| Adapter Series | SMA to N |
