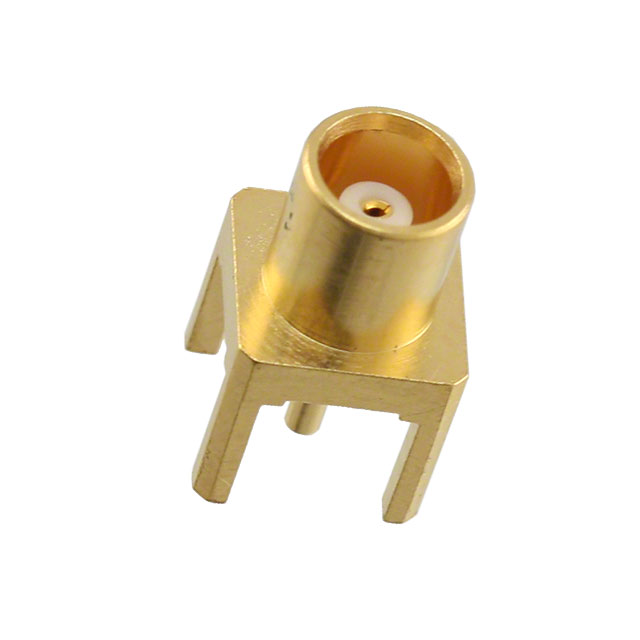

919-NM109J-51P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 919-NM109J-51P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 919-NM109J-51P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 919-NM109J-51P |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MCX JACK STR 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.904 | $3.733 | $3.394 | $3.224 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.139 | $2.80 | $2.63 | $2.325 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 919-NM109J-51P | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MCX JACK STR 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15614 pcs | Data sheet | 919-NM109J-51P Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 919NM109J51P ARF1771 |
Operating Temperature | -40°C ~ 155°C |
| Number of Ports | 1 | Mounting Type | Through Hole |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | Non-Magnetic |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Through Hole Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MCX |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Beryllium Copper |
| Body Finish | Gold |
