903-613P-71AD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 903-613P-71AD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 903-613P-71AD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 903-613P-71AD |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMB PLUG 45 ANGLE 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.853 | $7.992 | $7.657 | $7.178 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.939 | $6.556 | $6.365 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 903-613P-71AD | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMB PLUG 45 ANGLE 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6025 pcs | Data sheet | 903-613P-71AD Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 903-613P-71AD-ND 903613P71AD ARF2082 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line), 45° Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.3dB |

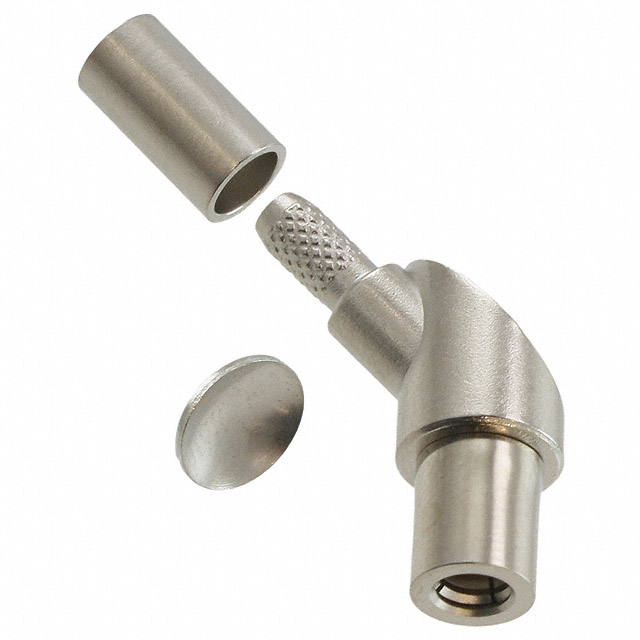

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 2GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMB Connector Plug, Female Socket 75 Ohm Free Hanging (In-Line), 45° Angle Solder | Contact Termination | Solder |
| Connector Type | Plug, Female Socket | Connector Style | SMB |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | AT&T 735, 735A, Belden 735A1 | Body Material | Zinc Die Cast |
| Body Finish | Nickel |
