903-536P-71S

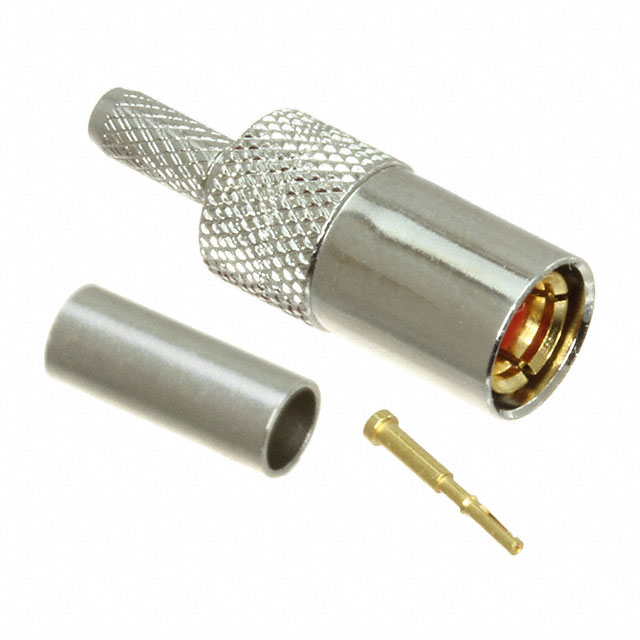

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 903-536P-71S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 903-536P-71S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 903-536P-71S |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMB PLUG STR 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $21.293 | $20.04 | $19.414 | $18.161 | $17.159 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 903-536P-71S | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMB PLUG STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1777 pcs | Data sheet | 903-536P-71S DrawingSMB Crimp Type Plugs Assy Instr.-C62 |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 903-536P-71S-ND 903536P71S ARF3074 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.3dB |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 Ferrule |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMB Connector Plug, Female Socket 75 Ohm Free Hanging (In-Line) Solder | Contact Termination | Solder |
| Connector Type | Plug, Female Socket | Connector Style | SMB |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 | Body Material | Brass |
| Body Finish | Nickel |
