903-505J-51S1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 903-505J-51S1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 903-505J-51S1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 903-505J-51S1 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMB JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $4.019 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 903-505J-51S1 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMB JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7569 pcs | Data sheet | 903-505J-51S1 DrawingAssembly Instr C60 |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 903505J51S1 ARF1239 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.3dB |

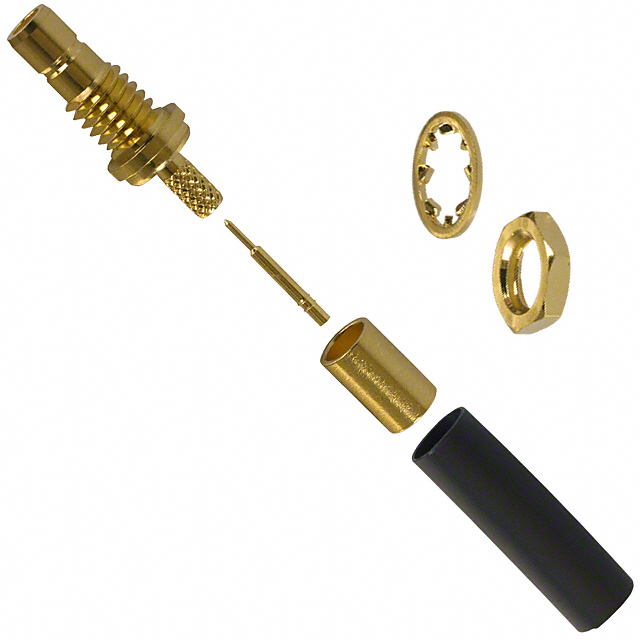

| Ingress Protection | - | Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMB Connector Jack, Male Pin 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Male Pin | Connector Style | SMB |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-179, 188, 316 Double Braid, M17/152-RD316 | Body Material | Brass |
| Body Finish | Gold |
