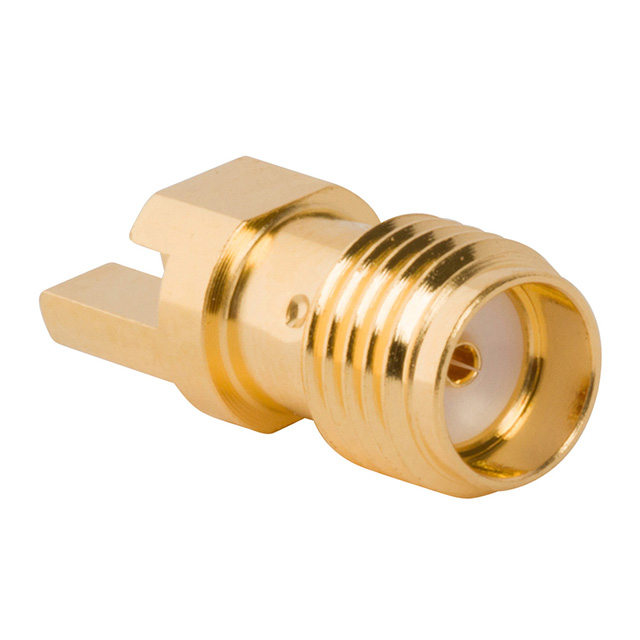

901-10513-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 901-10513-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 901-10513-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 901-10513-3 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.631 | $3.473 | $3.157 | $2.999 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.92 | $2.604 | $2.447 | $2.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 901-10513-3 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16052 pcs | Data sheet | 901-1051x-x Datasheet901-10513-3 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ARF2506 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | - | Frequency - Max | 26.5GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | - | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | - |
| Center Contact Material | - | Cable Group | - |
| Body Material | - | Body Finish | - |
