31-6055

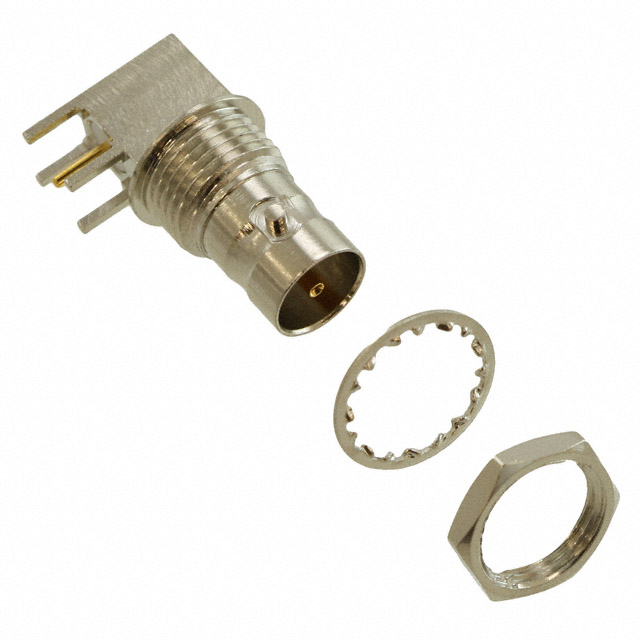

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 31-6055 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 31-6055 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 31-6055 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MINI BNC JACK R/A 75OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.10 | $3.92 | $3.564 | $3.385 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.296 | $2.94 | $2.762 | $2.441 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 31-6055 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI BNC JACK R/A 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13650 pcs | Data sheet | Mini-BNC Brochure31-6055 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 031-6055 316055 ARF1554 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Mini Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Mini | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
