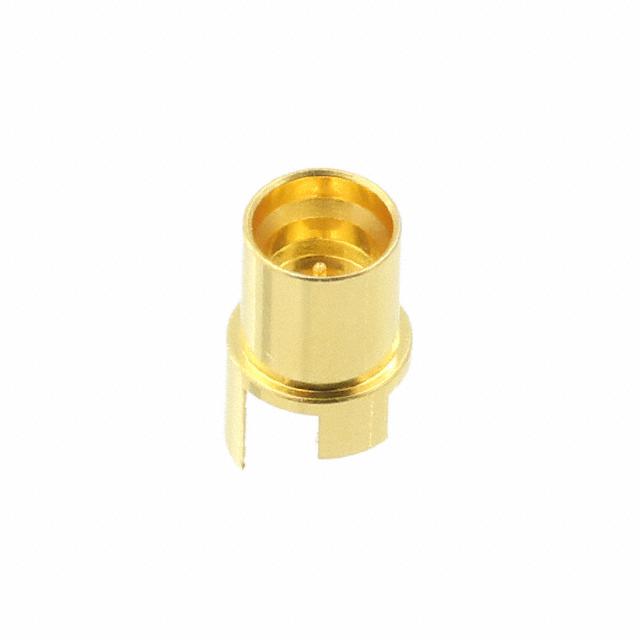

302114
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302114 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302114 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302114 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMP RCPT STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.773 | $3.61 | $3.282 | $3.117 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.035 | $2.707 | $2.543 | $2.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302114 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMP RCPT STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13932 pcs | Data sheet | 302114 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX2517 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 100 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 26.5GHz |
| Features | Limited Detent | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMP Connector Receptacle, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | SMP | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Beryllium Copper | Body Finish | Gold |
