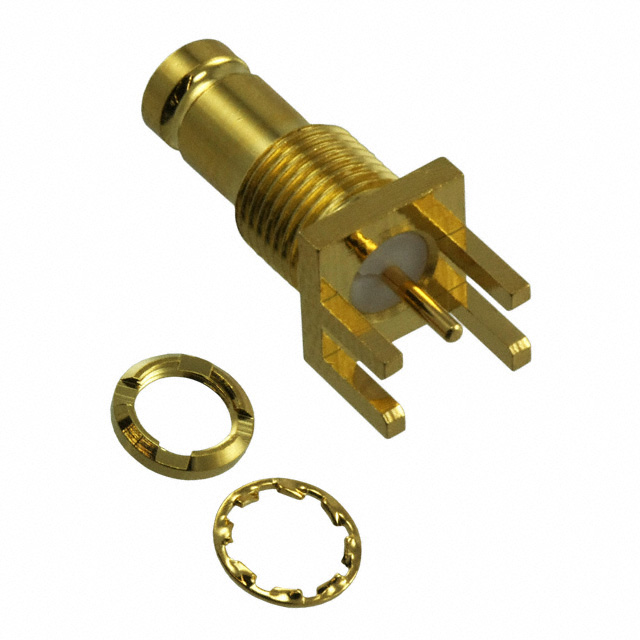

282133-75
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282133-75 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282133-75 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282133-75 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN 1.0/2.3 RCPT STR 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.024 | $3.85 | $3.50 | $3.325 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.238 | $2.888 | $2.713 | $2.398 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282133-75 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN 1.0/2.3 RCPT STR 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16479 pcs | Data sheet | 282133-75 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 28213375 ACX1783 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch; Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Push-Pull |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | 1.0/2.3 Connector Receptacle, Female Socket 75 Ohm Board Edge, End Launch; Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | 1.0/2.3 | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
